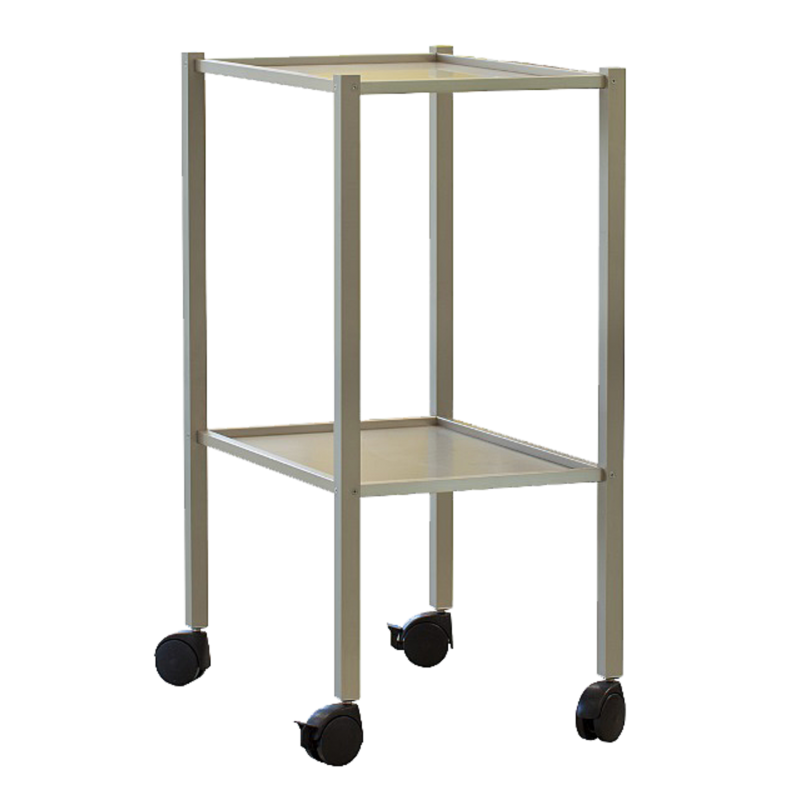

MRI Instrument table

An instrument table belongs to the indispensable equipment in every medical practice or facility. This is intended for use in the field of magnetic resonance imaging (MRI, or MR).

The MRI-compatible instrument table is suitable for the following MRI systems (according to their compatibility data sheets) :

Philips: Achieva and Intera 1.5 T, Achieva XR at 1.5 T
Siemens: Magnetom Serie up to 3 T
GE: Discovery MR450 1.5 T (1.5T LCC HDv), Signa 1.5 T HDx Series (1.5 T LCC HDx-BRM, Hde), Signa 1.5 T Twin Speed(1.5 T LCC HDx-TRM), 1.5 T LCC HD, Cx1.5 T w. CRM enclosure, SV 1.5 T, SIV 1.5 T, SIII 1.5 T

The MRI instrument table can be used safely under the following conditions:

Static magnetic field of maxiumum 3 Tesla or less
Additionally a spatial gradient of maximum 8,6 T/m or less
The instrument table may not exceed the limit of 8,6 T/m in sliding in the direction of the magnet.

Features :

• The frame structure is made of aluminum square tube profiles (dimensions 30 x 30 x 2 mm) and aluminum hollow profiles (dimensions 20.6 x 19 x 1,4 mm).
• The surface consists of anodized aluminium.
• The two aluminium shelves (internal dimensions approximately 595 x 395 mm) have a thickness of 2 mm and are placed at the heights of 400 mm and 990 mm respectively.
• The maximum load capacity per shelf is 20 kg.
• The MRI instrument table includes four non-marking castors (Ø 75 mm). Two of them are lockable.
