Physiotherapy and general examination 3 section couches

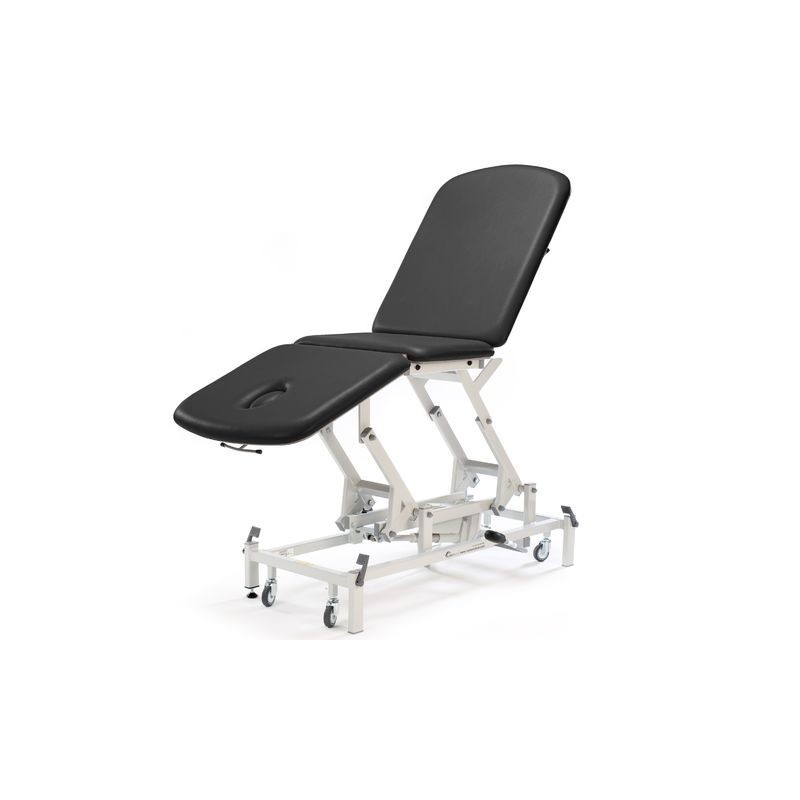

A very strong and rigid 3 section couch with a traditionally long head section to suit a wide range of physiotherapy and general examination procedures.

The couch can be adjusted to provide support for the patient in prone, supine and seated positions. Features: Safe working load and lifting capacity of 240Kg. Power assisted head section is adjustable from -25  to +75 degrees. Power assisted backrest adjustable from horizontal...
Dimension
Color
Elevation
Head section

The couch can be adjusted to provide support for the patient in prone, supine and seated positions.

Features:

  • Safe working load and lifting capacity of 240Kg.
  • Power assisted head section is adjustable from -25  to +75 degrees.
  • Power assisted backrest adjustable from horizontal to 80 degrees.
  • Head section and backrest incorporate anti-trap design.
  • Choice of hydraulic or electric height elevation.
  • Excellent height range from 45cm to 98cm.
  • Retractable wheel design with adjustable foot for stability on uneven surfaces.
  • Breathing hole and plug included as standard.
  • Purpose made precision bearings on all pivot points.
  • Clearance beneath frame for mobile hoist.
  • Hand switch fitted as standard on electric models.
  • Standard width 65cm upholstery.
  • Hydraulic with manual backrest and head section.

Models:

  • Hydraulic with manual backrest and head section
  • Electric with electric backrest and head section

Choice of dimensions:

  • Width : 65 cm / Back rest : 83 cm / seat section : 43 cm / head section : 70 cm
  • Width : 65 cm / Back rest: 93 cm / seat section : 43 cm / head section : 52 cm
  • Width : 65 cm / Back rest : 93 cm / Assise : 43 cm / head section : 52 cm (with upper limb support)

Colors: 15 colors available
